Industrial Sectional Overhead Door
Horizontal insulated panels rise on tracks to suit the available building clearance.
- Consider for
- Insulated industrial entrances
- Check first
- Headroom, side room and track layout
Technical review — final configuration requires confirmation.
JBL Entrance supports industrial sectional overhead door selection for warehouses, logistics centers, factories, cold storage and commercial garages. Review the published configuration, drawings and agreed verification requirements before ordering.
At a glance
- Product
- JE-1005 · Industrial Sectional Overhead Door
- Application
- Warehouses, logistics centers, factories, cold storage and commercial garages.
- Material / construction
- Finger-safe panels; reinforcement struts; EPDM sealing and pneumatic bottom edge. Standard lift, high lift, vertical lift, low-headroom and roof-mounted layouts.
- Key parameters
- Panel thickness: 40 / 42 / 43 / 50 / 60 / 75 / 80 mm; Maximum door area: Up to 100 m²; Maximum width, standard lift: 9.5 m
- Buyer type
- Manufacturers, assemblers, distributors, installers and project partners.
- Engineering support
- Product matching, drawing review and configuration guidance.
- Quality evidence
- Confirm the relevant model documents, inspection scope and acceptance criteria.
Match an insulated sectional door to your building clearance
What it is & where it fits
Hinged insulated panels move in side tracks and follow the selected lift arrangement inside the building. This format is considered for warehouse entrances, factories and commercial garages where a panelled closure and the available roof space shape the choice.
What it helps you address
It addresses the need for an insulated panel construction without a swinging door leaf occupying the approach. The track path must still leave usable space for equipment, services and storage inside.
How to choose your configuration
- Compare standard, high, vertical or low-headroom lift using opening height, headroom, side room and roof geometry.
- Choose the panel thickness, skin material, finish and seals for the intended environment; identify any visibility requirement separately.
- Match the operator and balancing hardware to door size, mass and operating frequency. Confirm bottom-edge protection and the complete safety arrangement.
Limits & checks before ordering
Panel thickness alone does not establish the thermal performance of the complete installed door. Wind load, reinforcement, structural fixings and large-opening limits depend on the selected configuration. Cold-room use requires a temperature and sealing review; do not assume freezer or fire-door suitability.
Start with the information you have
Send clear opening dimensions and a side-section sketch showing the ceiling, beams and services. Include indoor/outdoor temperatures, daily cycles and quantity if known. Photos can start the discussion when detailed building drawings are unavailable.
What should you confirm before choosing a sectional door?
Confirm the opening and available track space first, then review panel requirements, operator duty, controls and the supply scope. The proposed lift arrangement must suit the actual building; opening width and height alone are not enough.
Build a configuration around your requirements
Use this checklist to compare proposals. It identifies questions to resolve, rather than promising that every option is available for every opening.
| Review item | Buyer decision | What to share | What to confirm |
|---|---|---|---|
| Tracks and lift arrangement | How the door will travel within the building. | Headroom, backroom, side room, roof slope and obstructions. | Selected track arrangement on a drawing. |
| Panels and sealing | Required closure, appearance and separation. | Exposure, conditions on both sides, finish and window requirements. | Panel and seal configuration; scope of any performance evidence. |
| Operator and controls | Usage frequency and available interfaces. | Peak operating pattern, supply and control requirements. | Named operator and included control equipment. |
| Site and handover | Who provides each installation interface. | Support structure and project document requirements. | Fixings, site work, commissioning and handover responsibilities. |
What should your quotation include?
Ask the quotation to identify panels, tracks, hardware, seals, operator and controls by the selected configuration. List windows and other requested features separately. Confirm who supplies supporting steelwork, wiring and installation, and which documents are included.
Helpful before you enquire
Have approximate dimensions or an incomplete parts list? Please share what you have and identify any uncertainties. Spring or Delia can help clarify the next questions.
Discuss my requirementsSectional doors in context
Compare overhead track routes and internal clearances before choosing a lift arrangement.

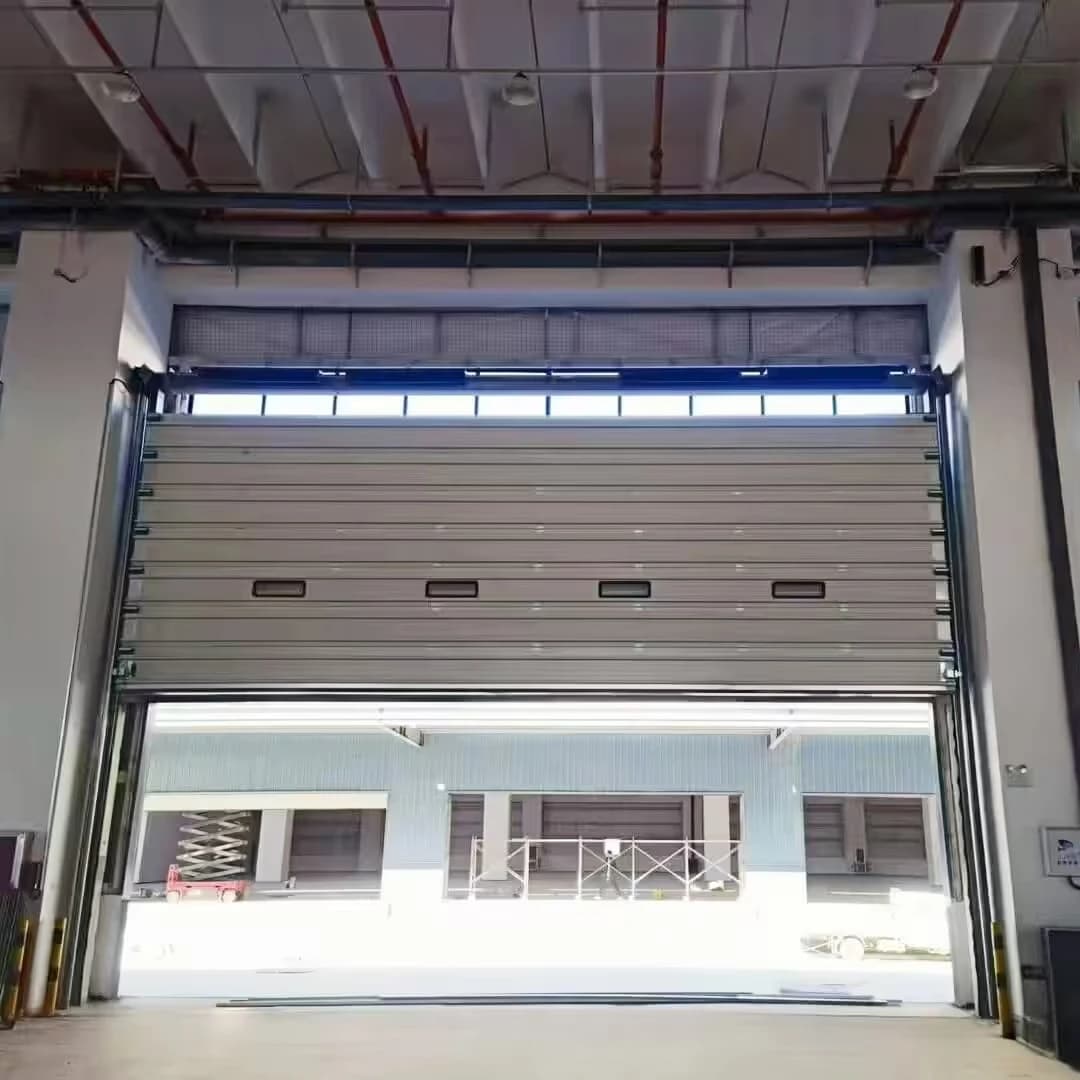

Sectional door and overhead opening space
View full image

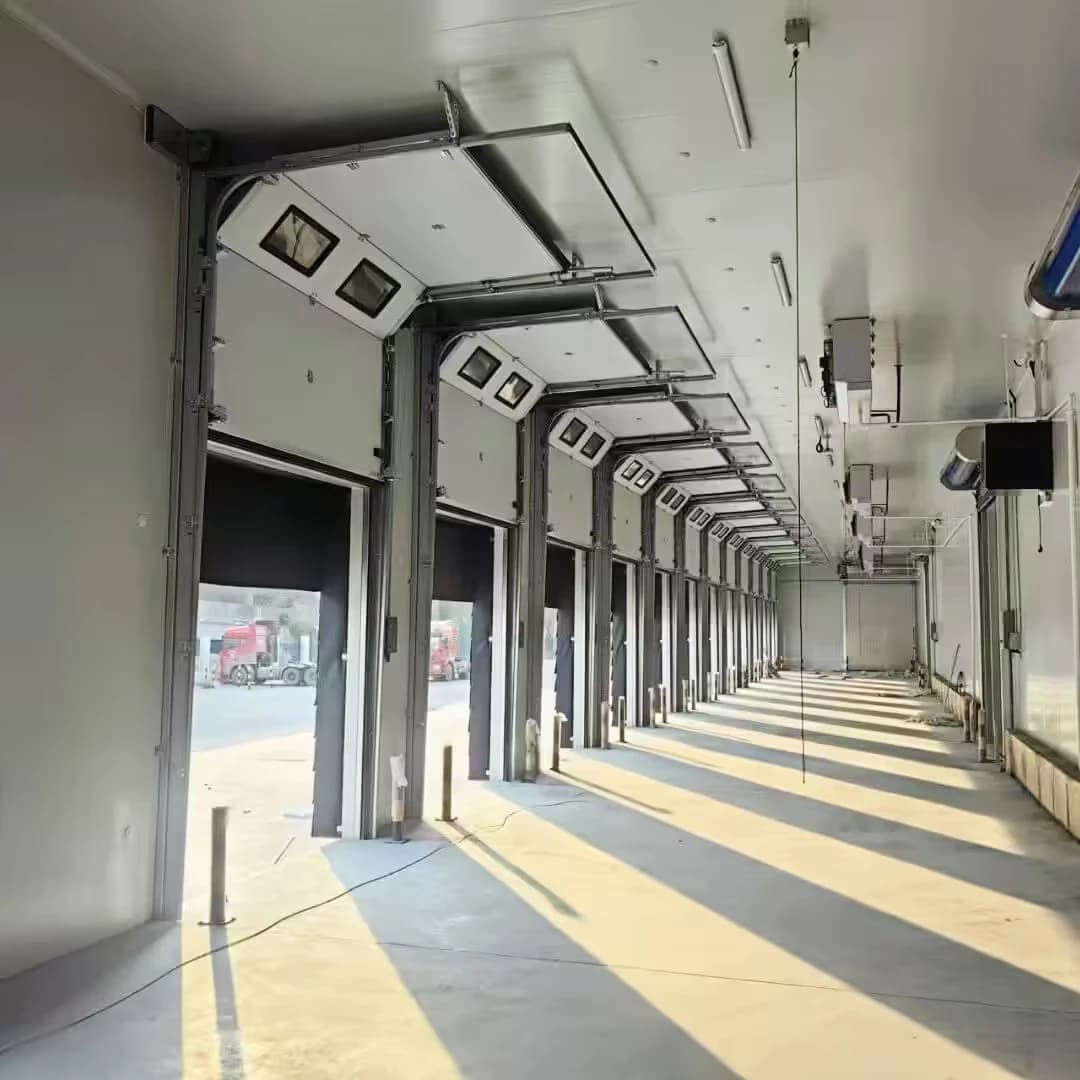

Overhead tracks along a row of sectional doors
View full image
Panel, spring and track arrangement
View full imageSupplier reference imagery, used with permission. Shown configurations are illustrative; final materials, components and suitability are confirmed for each project.
Technical selection data
Catalogue values for technical review. Ratings and applicability must be confirmed for the selected configuration.
| Parameter | Selection data |
|---|---|
| Panel thickness | 40 / 42 / 43 / 50 / 60 / 75 / 80 mm |
| Compound panel figures (source) | 43+60 / 43+95 / 50+120 mm |
| Panel height range | 450-610 mm |
| Panel structure | Double steel/aluminum skins with PU foam |
| PU foam density | 48 ± 3 kg/m³ |
| Maximum door area | Up to 100 m² |
| Maximum width, standard lift | 9.5 m |
| Maximum width, vertical lift | 8.5 m |
| Larger sizes | Project Specific |
Technical items to confirm
Compound thickness figures require a configuration drawing. Thermal values and wind ratings are not quantified: To Be Confirmed.
Source: JBL Entrance Door Systems Catalogue — International English V1.0, 2026-09-19 · pages 10, 11. Confirm final specifications and suitability for your project.
Configuration & finishes
Structure and options
Finger-safe panels; reinforcement struts; EPDM sealing and pneumatic bottom edge. Standard lift, high lift, vertical lift, low-headroom and roof-mounted layouts.
Colors, finishes and accessories
Steel and aluminum finish samples shown below. Final finish code: Project Specific.
Your questions, answered
Practical answers for selecting and specifying this product.
Which lift arrangement will fit my building?
The catalogue includes standard, high, vertical and low-headroom layouts, as well as roof-mounted arrangements. Send a section drawing showing the lintel, roof slope, side room and obstructions to determine a suitable track route.
What if there is very little headroom?
Ask for a low-headroom review and provide the actual clearance above the finished opening. The track, springs and operator must fit as an assembly; do not order from opening width and height alone.
How do I choose the insulation?
Start with the temperatures on each side and any specified thermal target. The catalogue lists several PU-insulated panel thicknesses, but panel thickness alone does not establish the complete door’s thermal performance. Request configuration-specific evidence if your project requires it.
Can I use my existing operator?
Supply its model, drive arrangement, door mass and balance information. Track layout, duty, controls and safety devices must be compatible. Do not assume an existing operator can drive a replacement door solely because the opening size is unchanged.
What makes quotations easier to compare?
Use the same opening and lift layout, panel finish, operator, safety devices and installation scope in each enquiry. Identify freight, packing and required documents separately so that differences in supply scope are visible.
Have a different opening or requirement?
Ask about your project →Download JE-1005 brochure (PDF, 13 pages)Application fit
Sectional overhead doors use horizontal panels guided along tracks. Send the opening dimensions, headroom and side clearance to review the lifting arrangement.
Warehouses, logistics centers, factories, cold storage and commercial garages.
Include project design loads, safety requirements and any specified approval documents in your enquiry.
How project coordination worksMake the next selection decision.
| Option | Suitable for | Key consideration |
|---|---|---|
| New system | A new opening or specified project | Headroom, side room and track layout |
| Replacement | An existing installation | Identify the original assembly, interfaces and failed part before confirming compatibility. |
| Assembly / component scope | A partner integrating parts locally | Agree parts included, drawings, local responsibilities and acceptance checks. |
Engineering insight
Headroom, side room and track layout
Use the same model, drawing revision and configuration across the quotation, technical review and acceptance record. Resolve differences before order release.
Evidence to request
Model-specific technical documents, reviewed drawings, an agreed parts/configuration schedule and inspection requirements. Completed project references are shared only when verified and permitted for disclosure.
Ask about JE-1005
Tell us your opening dimensions, quantity and application. You can add a drawing under project details.
Panels & component details
Compare the visible component details with your drawing and required bill of materials.

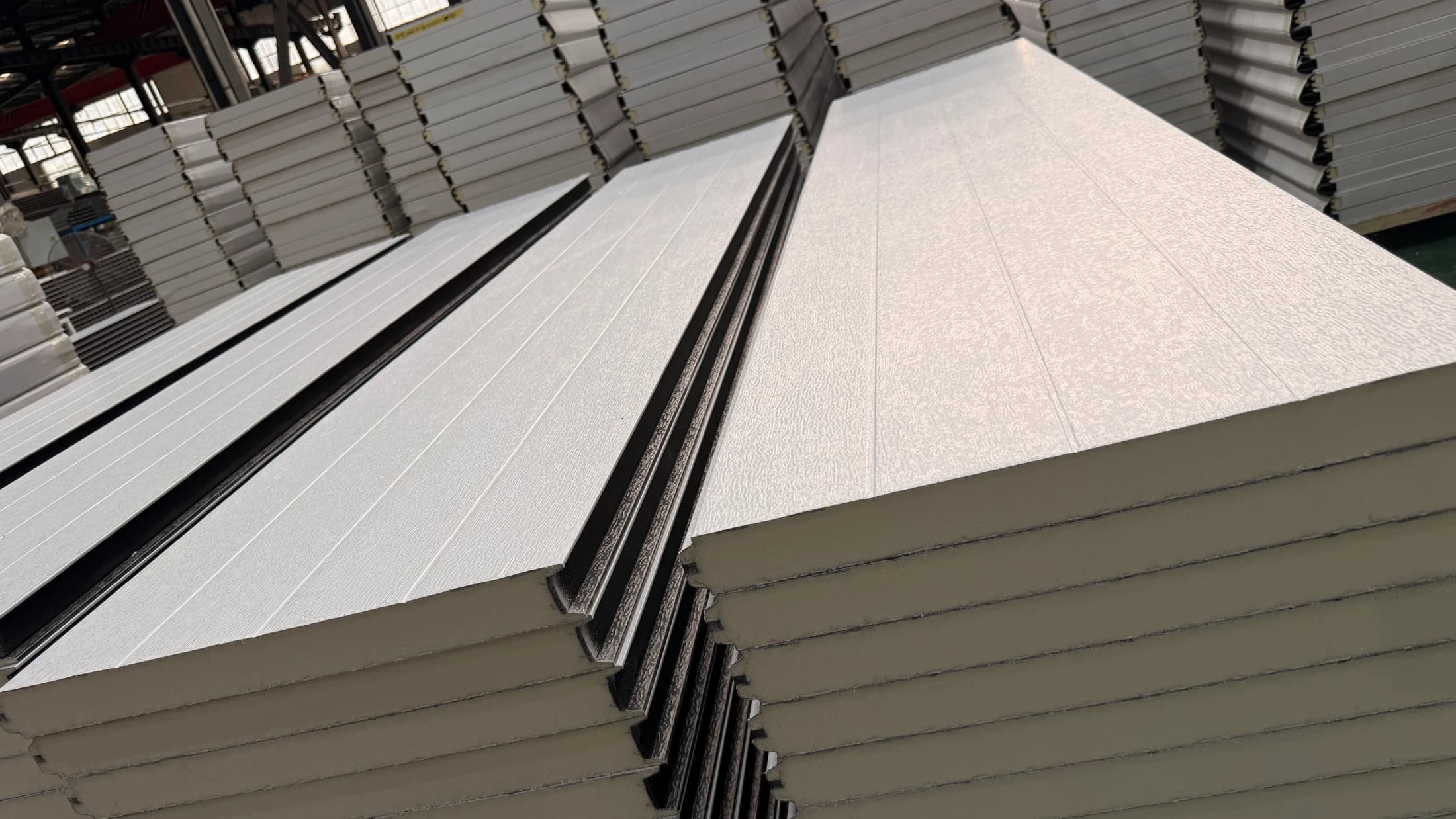

Panel surfaces and section edges
View full image

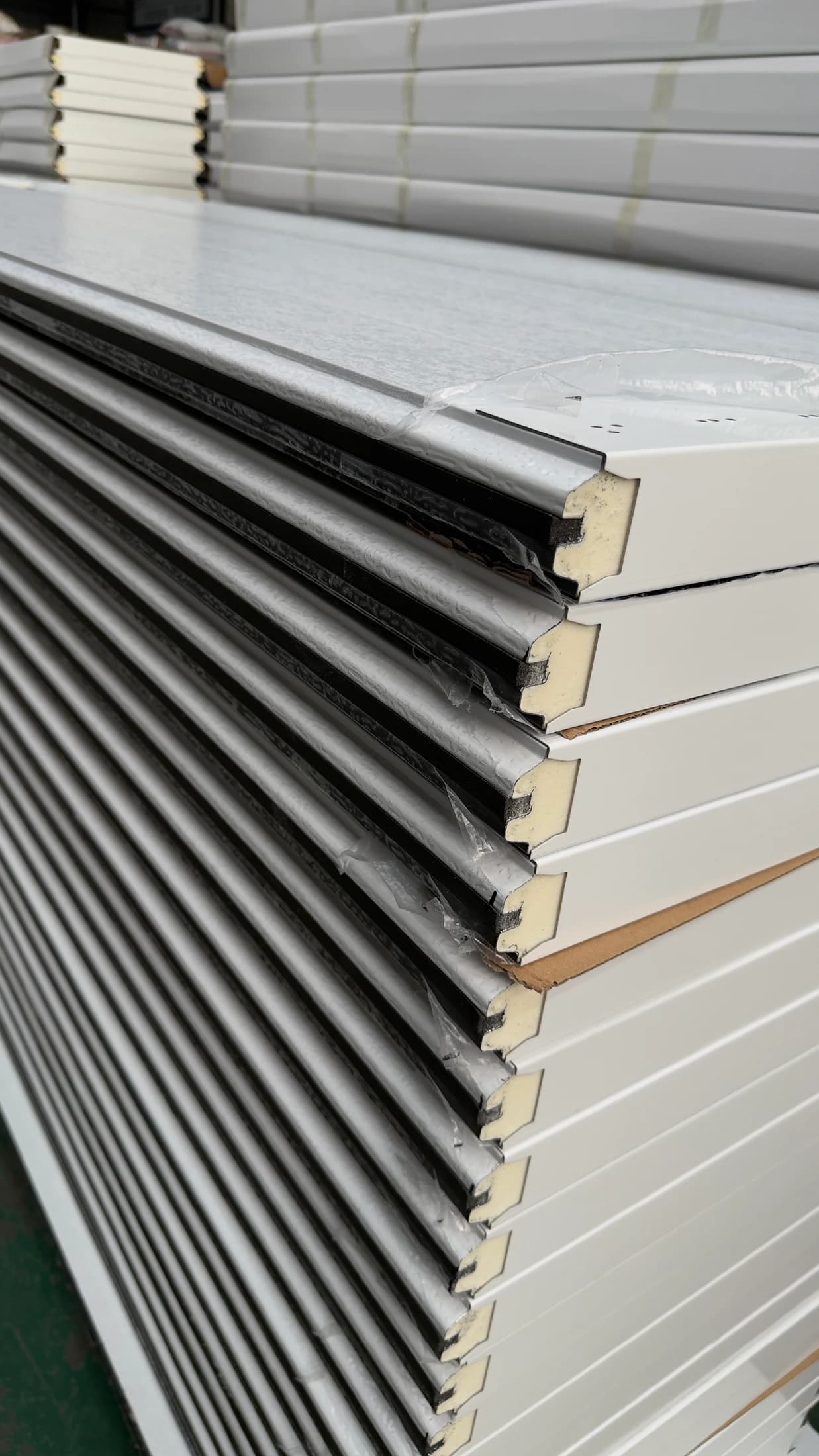

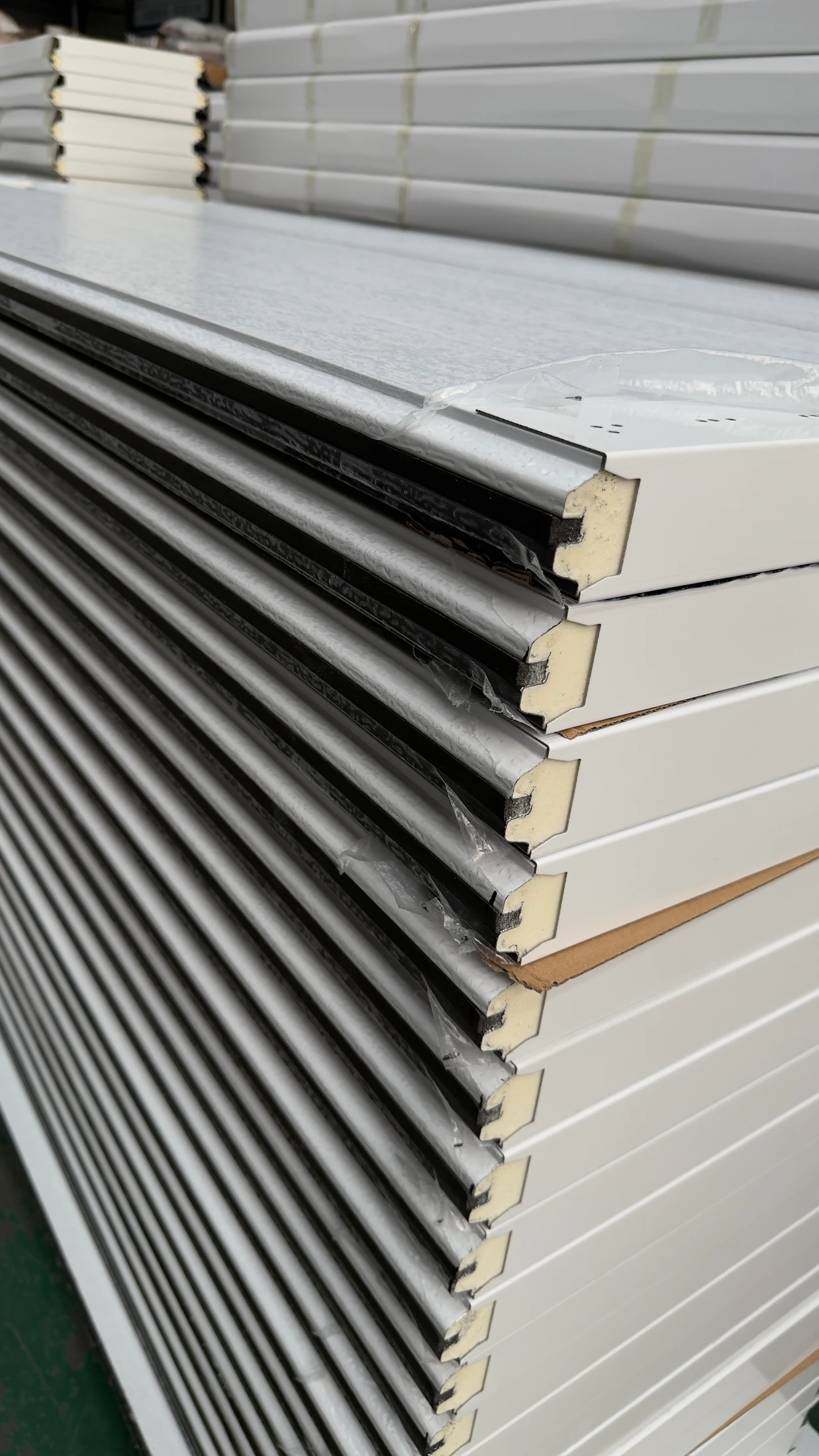

Panel cross-section and edge profile
View full image

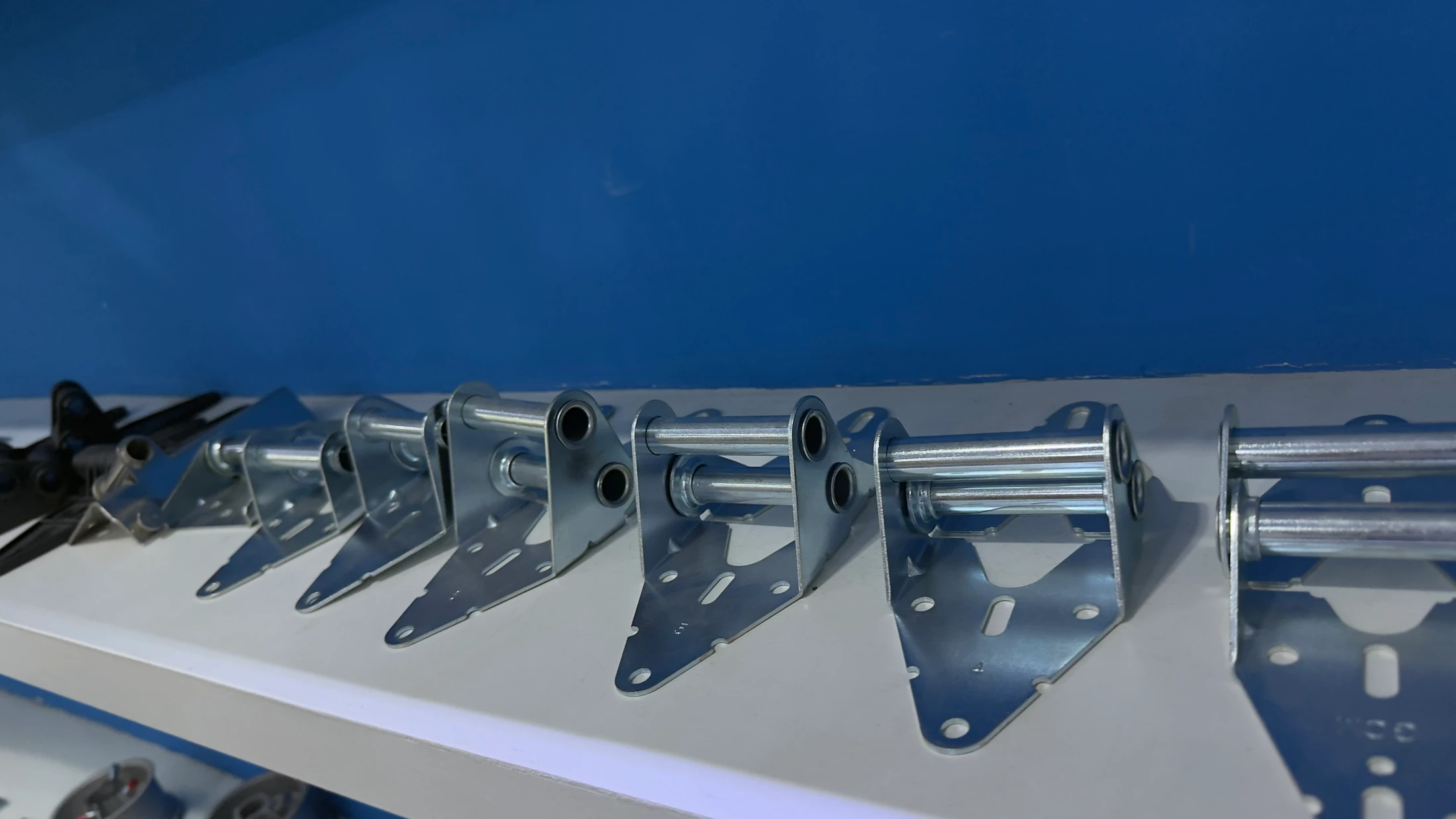

Roller support and hinge details
View full imageSupplier reference imagery, used with permission. Shown configurations are illustrative; final materials, components and suitability are confirmed for each project.
