High-Speed PVC Roll-Up Door
A flexible PVC curtain door for frequent opening and separation between working areas.
- Consider for
- Frequent movement between working areas
- Check first
- Opening size, traffic, wind and temperature
Technical review — final configuration requires confirmation.
JBL Entrance supports high-speed pvc roll-up door selection for frequent traffic in logistics passages, food processing and controlled environments. Review the published configuration, drawings and agreed verification requirements before ordering.
At a glance
- Product
- JE-1001 · High-Speed PVC Roll-Up Door
- Application
- Frequent traffic in logistics passages, food processing and controlled environments.
- Material / construction
- Steel or stainless steel frame; variable frequency control; servo drive with soft start/stop; infrared sensor. Optional safety edge, vision panels, radar/loop detector, remote control and pull cord.
- Key parameters
- Maximum size: 5500 × 6500 mm; Opening/closing speed: 0.8-1.5 m/s; Power supply: 220 V / 380 V optional
- Buyer type
- Manufacturers, assemblers, distributors, installers and project partners.
- Engineering support
- Product matching, drawing review and configuration guidance.
- Quality evidence
- Confirm the relevant model documents, inspection scope and acceptance criteria.
Keep frequently used passages working around your traffic
What it is & where it fits
A flexible PVC curtain rolls up above the opening, with side guides and a powered drive. Consider it for warehouse passages and production areas where vehicles or people pass repeatedly. Food-processing and controlled environments require a separate review of cleaning and sealing needs.
What it helps you address
Choose this format when you need to reopen a passage frequently while separating adjacent work areas between movements. The useful comparison is your actual traffic pattern and time spent open, rather than opening speed alone.
How to choose your configuration
- Measure clear width and height, plus space above and beside the opening for the curtain roll, frame and drive.
- Choose steel or stainless-steel framing to suit the environment; discuss curtain colour and vision panels for visibility across the passage.
- Match radar, loop detection, pull cord or remote activation to the traffic. Confirm drive, supply voltage, infrared detection and any safety-edge option as one configuration.
Limits & checks before ordering
A flexible curtain is not evidence of burglary resistance, fire protection or freezer suitability. For exterior wind, pressure differences, washdown or temperature-controlled rooms, provide the actual conditions before selection. Catalogue maximum dimensions and speed are not a guarantee for every combination.
Start with the information you have
Start with an opening photo, approximate dimensions and the vehicles using it. Add openings per hour, indoor/outdoor position, temperature difference and quantity when known. You can ask for selection help before a drawing is ready.
Is a high-speed PVC door right for your passage?
Start with traffic frequency, the largest load, available space and the separation required between areas. Review the curtain, drive, activation and protective devices as one configuration. An opening-speed figure alone does not establish suitability for your site.
Build a configuration around your requirements
Use this checklist to compare proposals. It identifies questions to resolve, rather than promising that every option is available for every opening.
| Review item | Buyer decision | What to share | What to confirm |
|---|---|---|---|
| Traffic and activation | How vehicles approach and when the opening is busiest. | Vehicle/load dimensions, peak movements and pedestrian routes. | Proposed activation method and operating duty. |
| Curtain and separation | What must be separated on the two sides. | Indoor/outdoor location, temperature and cleaning or sealing needs. | Curtain construction, sealing and applicable evidence. |
| Installation interface | Whether the head unit, guides and access will fit. | Clear opening, headroom, side room and photographs. | Configuration drawing and fixing responsibilities. |
| Controls and protection | How opening, closing and detection will operate together. | Power supply and any existing control interfaces. | Named devices and their inclusion in the offer. |
What should your quotation include?
Please identify the curtain and frame assembly, operator, controls, protective devices and accessories in the quotation. Clarify fixings, electrical work, installation, commissioning and freight separately. A feature shown in a photograph is not automatically included.
Helpful before you enquire
Have approximate dimensions or an incomplete parts list? Please share what you have and identify any uncertainties. Spring or Delia can help clarify the next questions.
Discuss my requirementsRoll-up doors in context
Compare curtain colors, vision-panel positions and the space around the opening.

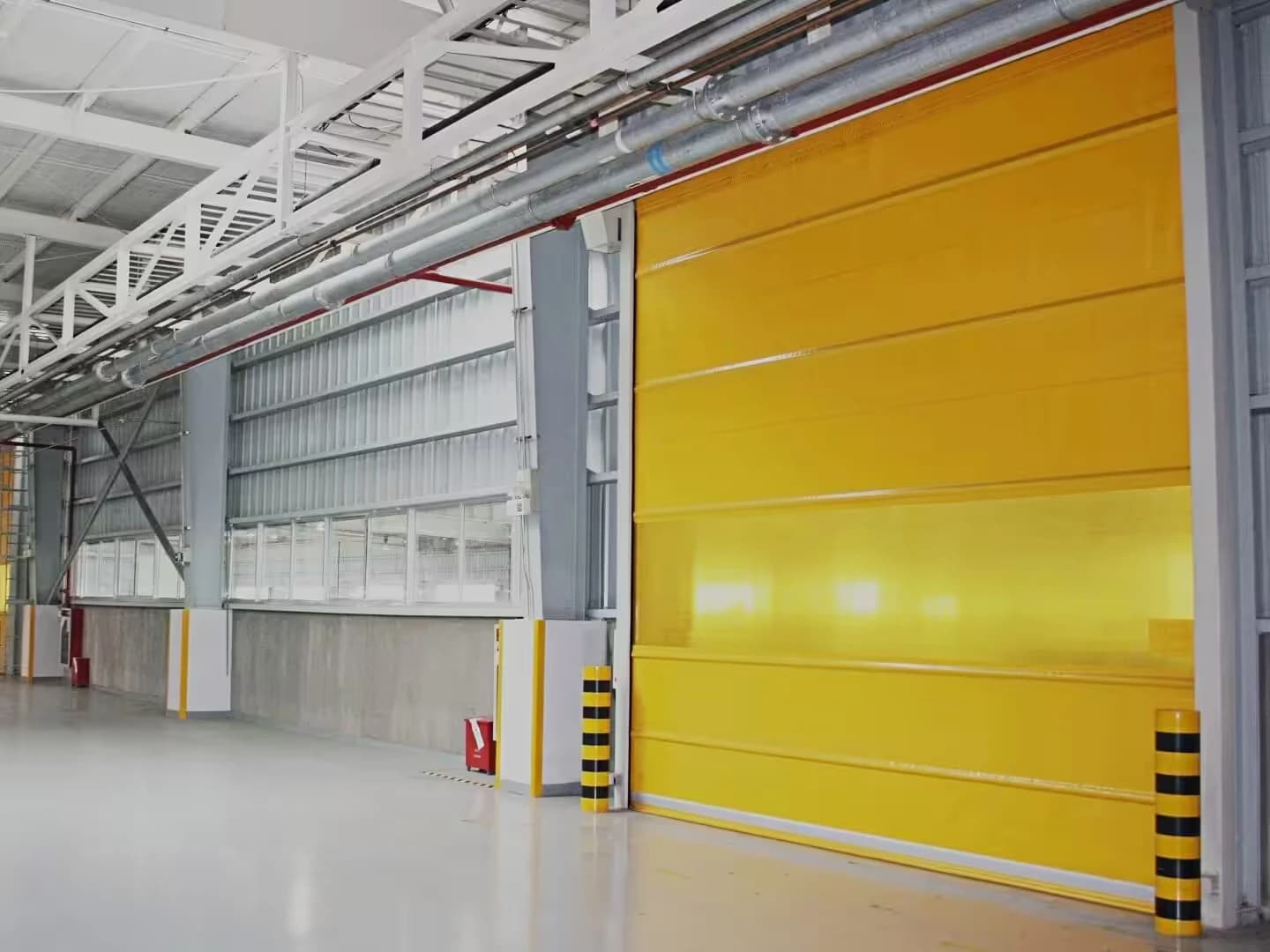

Yellow roll-up curtain at a warehouse opening
View full image

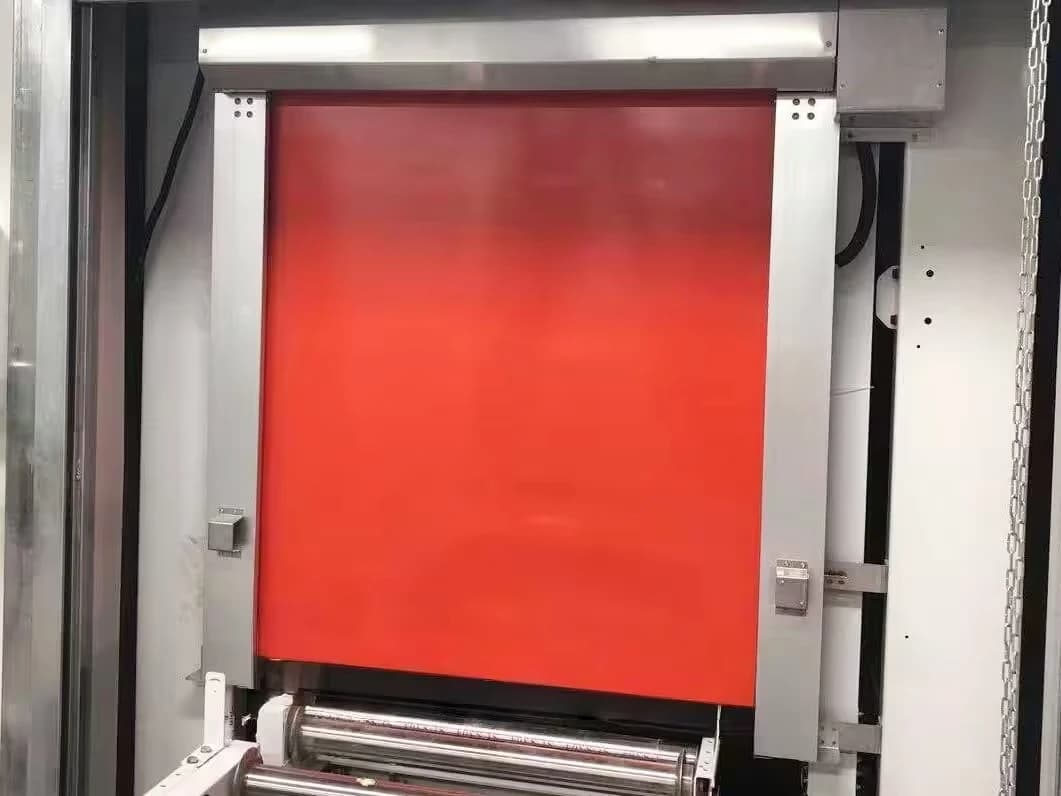

Red curtain at an internal process opening
View full image

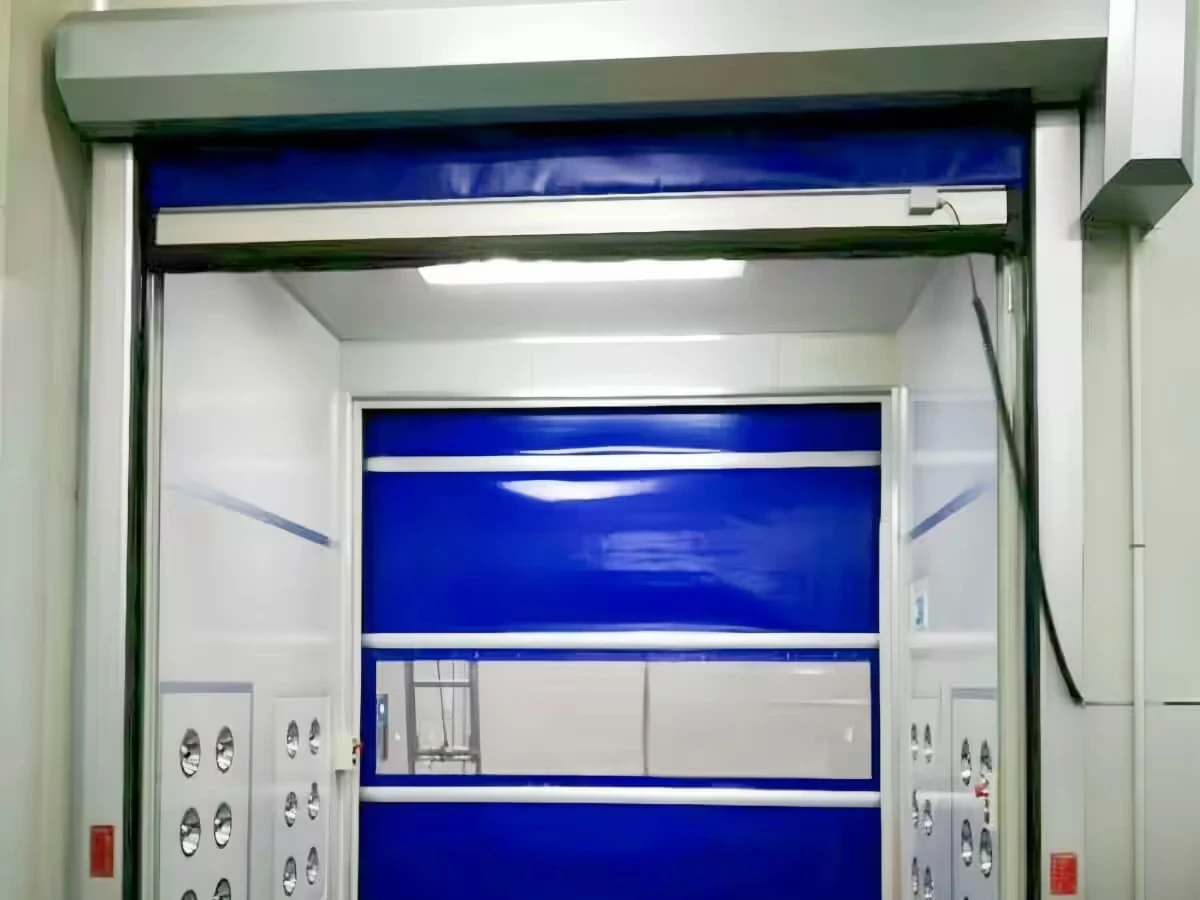

Blue curtain with a vision panel
View full imageSupplier reference imagery, used with permission. Shown configurations are illustrative; final materials, components and suitability are confirmed for each project.
Technical selection data
Catalogue values for technical review. Ratings and applicability must be confirmed for the selected configuration.
| Parameter | Selection data |
|---|---|
| Opening/closing speed | 0.8-1.5 m/s |
| Power supply | 220 V / 380 V optional |
| Maximum size | 5500 × 6500 mm |
| Control | Variable frequency |
| Service life (source claim) | ≥800,000 cycles |
| Wind resistance (source rating) | Up to level 6 |
| Working frequency | ≥500 cycles/day |
| Safety standard | To Be Confirmed |
Technical items to confirm
Source refers to relevant EN safety requirements without identifying a standard or certificate. Compliance and wind-rating test basis: To Be Confirmed.
Source: JBL Entrance Door Systems Catalogue — International English V1.0, 2026-09-19 · pages 4, 5. Confirm final specifications and suitability for your project.
Configuration & finishes
Structure and options
Steel or stainless steel frame; variable frequency control; servo drive with soft start/stop; infrared sensor. Optional safety edge, vision panels, radar/loop detector, remote control and pull cord.
Colors, finishes and accessories
Grey, blue, red, yellow and white. Custom colors on request.
Your questions, answered
Practical answers for selecting and specifying this product.
Is this a suitable door for forklift traffic?
This flexible PVC roll-up door is intended for frequent traffic between working areas. Describe the vehicle sizes, movements per day and pedestrian routes so that the opening, activation and safety devices can be selected together.
Can I use it on an outdoor opening?
Outdoor suitability depends on the opening dimensions and wind exposure. Include the site location, prevailing wind conditions and whether the opening is sheltered. An indoor installation photograph does not establish an outdoor wind rating.
Can it be used for a cold room or food-processing area?
Send the temperatures on both sides, cleaning regime and sealing requirements. These conditions determine whether this configuration is suitable; a standard PVC curtain should not be assumed to provide cold-room insulation or a cleanroom classification.
Which opening controls and safety options can I request?
The catalogue lists infrared sensing and options including a safety edge, vision panels, radar or loop detection, remote control and pull cord. Identify who uses the opening and how traffic approaches it so the quotation can specify the required devices.
What should I include to get a relevant quotation?
Start with clear opening width and height, quantity, indoor or outdoor location, daily use and power supply. Add a photograph or drawing and your target delivery date. State whether the price should include controls, installation or freight.
Application fit
This high-speed PVC door uses a flexible roll-up curtain. For a warehouse opening, specify traffic frequency, clear opening size and the conditions on each side.
Frequent traffic in logistics passages, food processing and controlled environments.
Include project design loads, safety requirements and any specified approval documents in your enquiry.
How project coordination worksMake the next selection decision.
| Option | Suitable for | Key consideration |
|---|---|---|
| New system | A new opening or specified project | Opening size, traffic, wind and temperature |
| Replacement | An existing installation | Identify the original assembly, interfaces and failed part before confirming compatibility. |
| Assembly / component scope | A partner integrating parts locally | Agree parts included, drawings, local responsibilities and acceptance checks. |
Engineering insight
Opening size, traffic, wind and temperature
Use the same model, drawing revision and configuration across the quotation, technical review and acceptance record. Resolve differences before order release.
Evidence to request
Model-specific technical documents, reviewed drawings, an agreed parts/configuration schedule and inspection requirements. Completed project references are shared only when verified and permitted for disclosure.
Ask about JE-1001
Tell us your opening dimensions, quantity and application. You can add a drawing under project details.
