JE-1010 / Door Systems

Garage Door Hardware Kits

Two separate hardware kits: JE-1201 (16 ft. × 7 ft.) and JE-1202 (8 ft. × 7 ft.). Component quantities and fasteners are retained.

Consider for: A defined bill of materials for the door assembly
Check first: Kit size, track and shaft dimensions, component counts

Technical review — final configuration requires confirmation.

JBL Entrance supports garage door hardware kits selection for hardware selection for 16 ft. × 7 ft. and 8 ft. × 7 ft. garage doors. Review the published configuration, drawings and agreed verification requirements before ordering.

At a glance

Product: JE-1010 · Garage Door Hardware Kits
Application: Hardware selection for 16 ft. × 7 ft. and 8 ft. × 7 ft. garage doors.
Material / construction: Confirm door mass, track arrangement, hinge pattern and spring/shaft interfaces before ordering. Springs and compatibility are Project Specific.
Key parameters: Kit / nominal door size: JE-1201 / 16 ft. × 7 ft.; Kit / nominal door size: JE-1202 / 8 ft. × 7 ft.
Buyer type: Manufacturers, assemblers, distributors, installers and project partners.
Engineering support: Product matching, drawing review and configuration guidance.
Quality evidence: Confirm the relevant model documents, inspection scope and acceptance criteria.

Find the right fit

Check the kit contents against the complete door assembly

What it is & where it fits

The catalogue lists hardware kits JE-1201 for a nominal 16 ft × 7 ft door and JE-1202 for a nominal 8 ft × 7 ft door. The bills of materials identify rollers, hinges, brackets, bearing plates, cable drums, cables, handles and fasteners.

What it helps you address

A defined kit helps you compare component scope for door assembly or a planned replacement. The useful purchasing question is which parts and quantities fit your door, rather than whether the box carries the same nominal opening size.

How to choose your configuration

Match panel layout, door mass, track arrangement, roller and hinge interfaces to the kit drawings and parts list.
Confirm drum, cable, shaft and bearing interfaces together. Check spring-system compatibility separately and explicitly agree whether springs are included.
Specify material or coating requirements and confirm component quantities, exclusions and any required substitutions before ordering.

Limits & checks before ordering

Nominal kit dimensions do not establish universal compatibility or a load rating. Existing worn parts, different tracks or a changed door mass can alter the required assembly. These kits are not a complete door or operator package; the agreed bill of materials defines the supply.

Start with the information you have

Send door dimensions, approximate mass if available, track and shaft photos, and the parts you need. For repeat purchases, include the existing part numbers or a marked bill of materials. You can begin with photos when the component names are unknown.

Discuss your requirements →

SELECTION ANSWER

How do you confirm that a hardware kit matches your door?

Use the complete door configuration and an itemised parts list. Nominal door size or a kit photograph cannot establish compatibility. Confirm the lifting arrangement, component references, quantities and interfaces before ordering.

Build a configuration around your requirements

Use this checklist to compare proposals. It identifies questions to resolve, rather than promising that every option is available for every opening.

JE-1010 · Requirements and configuration review
Review item	Buyer decision	What to share	What to confirm
Door assembly	Which system the kit must fit.	Door dimensions, available mass information and lifting arrangement.	A matching drawing or assembly reference.
Component list	Exactly which parts and quantities are supplied.	Required hinges, rollers, brackets, tracks and other component references.	An itemised bill of materials with exclusions.
Interfaces and finish	Whether parts match the selected assembly and requirements.	Existing labels, photographs, drawings and finish requirements.	Confirmed interfaces and specified material/finish.
Repeat ordering	How a later order can identify the same configuration.	Kit references, packaging needs and replacement-part requirements.	Package identification and current parts-list revision.

What should your quotation include?

Clarify whether the enquiry is for a complete kit or selected replacement components. Ask for a quantity and reference for each included item, plus packing and identification details. Loaded components and door balance require qualified assessment; this is a purchasing guide, not an adjustment procedure.

Helpful before you enquire

Review operator and hardware compatibility →Compare hardware-kit quotations →

Have approximate dimensions or an incomplete parts list? Please share what you have and identify any uncertainties. Spring or Delia can help clarify the next questions.

Discuss my requirements

A closer look at door hardware

Compare brackets, roller supports and cable drums with your drawing, not only with their appearance.

03 views

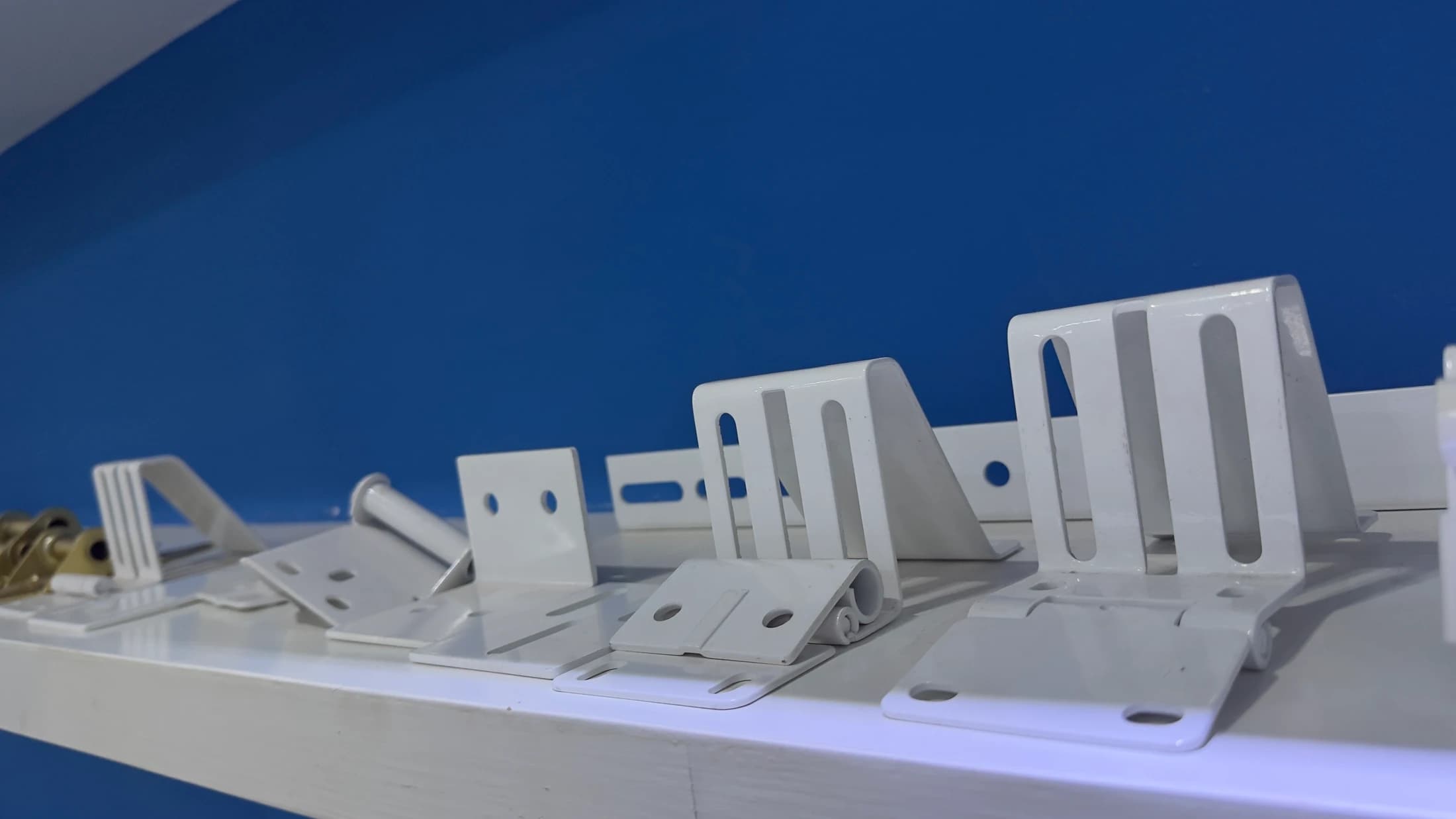

Bracket and hinge examples
View full image

Roller support and hinge details
View full image

Supplier reference imagery, used with permission. Shown configurations are illustrative; final materials, components and suitability are confirmed for each project.

Technical selection data

Catalogue values for technical review. Ratings and applicability must be confirmed for the selected configuration.

JE-1010 · Selection table 1
Component	JE-1201 / 16 ft. × 7 ft.	JE-1202 / 8 ft. × 7 ft.
11-Ball Bearing Nylon Rollers	10	5
No. 1 Hinges (14 Gauge)	11	11
No. 2 Hinges (14 Gauge)	2	2
No. 3 Hinges (14 Gauge)	2	2
Top Brackets	2	2
Bottom Brackets	2	2
No. 5 Jamb Brackets	2	2
No. 6 Jamb Brackets	2	2
Flag Brackets	2	2
End Bearing Plates	2	2
Center Support Bracket	1	1
Plastic Center Bearing	1	1
Cable Drums	2	2
8 ft. Lift Cables	2	2
Lift Handles	2	2

JE-1010 · Selection table 2
Fastener description	Quantity in each kit
Self-Tapping Screws (7/16 in. - 20 TPI × 1 in.)	90
Hex Head Lag Screws (7/16 in. × 2 in.)	20
Carriage Bolts (1/4 in. - 20 TPI × 5/8 in.)	16
Hex Tap Bolts and Nuts (5/16 in. × 1 in., 7/16 in. Hex Head)	12
Carriage Bolts and Nuts (3/8 in. - 16 TPI × 1 in.)	6
Hex Head Lag Screws (7/16 in. × 2.5 in.)	4
Hex Tap Bolts and Nuts (3/8 in. × 1.5 in., 9/16 in. Hex Head)	2

Technical items to confirm

The source lists 5 rollers for the 8 ft. kit and retains the same fastener counts for both kits. Confirm bill of materials and screw thread notation before purchase.

Source: JBL Entrance Door Systems Catalogue — International English V1.0, 2026-09-19 · pages 21, 22, 23. Confirm final specifications and suitability for your project.

Configuration & finishes

Structure and options

Confirm door mass, track arrangement, hinge pattern and spring/shaft interfaces before ordering. Springs and compatibility are Project Specific.

Colors, finishes and accessories

Source illustrations show each kit. Coating/material options: To Be Confirmed.

Before you choose

Your questions, answered

Practical answers for selecting and specifying this product.

What is included in a hardware kit?

The tables list components and fasteners for the catalogue kit sizes. Use them as a selection reference and agree an itemized bill of materials before purchase; make any required additions and exclusions explicit.

Will the kit fit an existing door?

Send door size and mass, track and shaft drawings, plus dimensions of the parts being replaced. Matching the nominal kit size or the appearance of a bracket is not enough to confirm compatibility.

Are springs, tracks, panels and an opener all included?

Do not assume a complete door assembly is included. Check each item against the agreed bill of materials and specify any springs, tracks, panels or operator separately where needed.

How do I choose material and coating?

Describe indoor or outdoor use, moisture and any corrosive exposure, then state the required material or coating. Agree the specification for each component rather than relying on the finish visible in a photograph.

Why should I confirm quantities before ordering?

The catalogue contains a roller-count item requiring confirmation and uses source fastener notation that needs checking. Review the component quantities, thread sizes and included or excluded parts against your door drawing before purchase.

Have a different opening or requirement?

Ask about your project →Download the product catalogue

Application fit

Hardware selection for 16 ft. × 7 ft. and 8 ft. × 7 ft. garage doors.

Include project design loads, safety requirements and any specified approval documents in your enquiry.

How project coordination works

Make the next selection decision.

Option	Suitable for	Key consideration
New system	A new opening or specified project	Kit size, track and shaft dimensions, component counts
Replacement	An existing installation	Identify the original assembly, interfaces and failed part before confirming compatibility.
Assembly / component scope	A partner integrating parts locally	Agree parts included, drawings, local responsibilities and acceptance checks.

Engineering insight

Kit size, track and shaft dimensions, component counts

Use the same model, drawing revision and configuration across the quotation, technical review and acceptance record. Resolve differences before order release.

Evidence to request

Model-specific technical documents, reviewed drawings, an agreed parts/configuration schedule and inspection requirements. Completed project references are shared only when verified and permitted for disclosure.

Compare Door Components Explore Solutions Buyer FAQ & resources Request Specification Send Product Details

Ask about JE-1010

Tell us your opening dimensions, quantity and application. You can add a drawing under project details.

You do not need to have every detail ready before contacting us.

Enquiry purpose: Project enquiry

Your name (optional)Email address *Please provide an email address where we can reply to your enquiry.How can we help? *

Additional project details or a drawing (optional)

You may include approximate dimensions, quantities or your preferred delivery schedule.

Product (optional)Company (optional)Project country (optional)QuantityTarget delivery dateYour role (optional)Project stage (optional)Attach a drawing or photo (optional)If available, a drawing or site photo can help us better understand your requirements.One PDF, JPG or PNG · up to 3 MB. A download records the filename only; it does not upload the file.

Send via WhatsApp or emailUse this form to prepare your enquiry. Choose WhatsApp below, or prepare an email to info@jblentrance.com. Review and send it in your email app. Attach drawings there yourself. Direct website sending is not connected yet; you can also download your brief.

Fields marked * are required to prepare your enquiry. Privacy & data handling

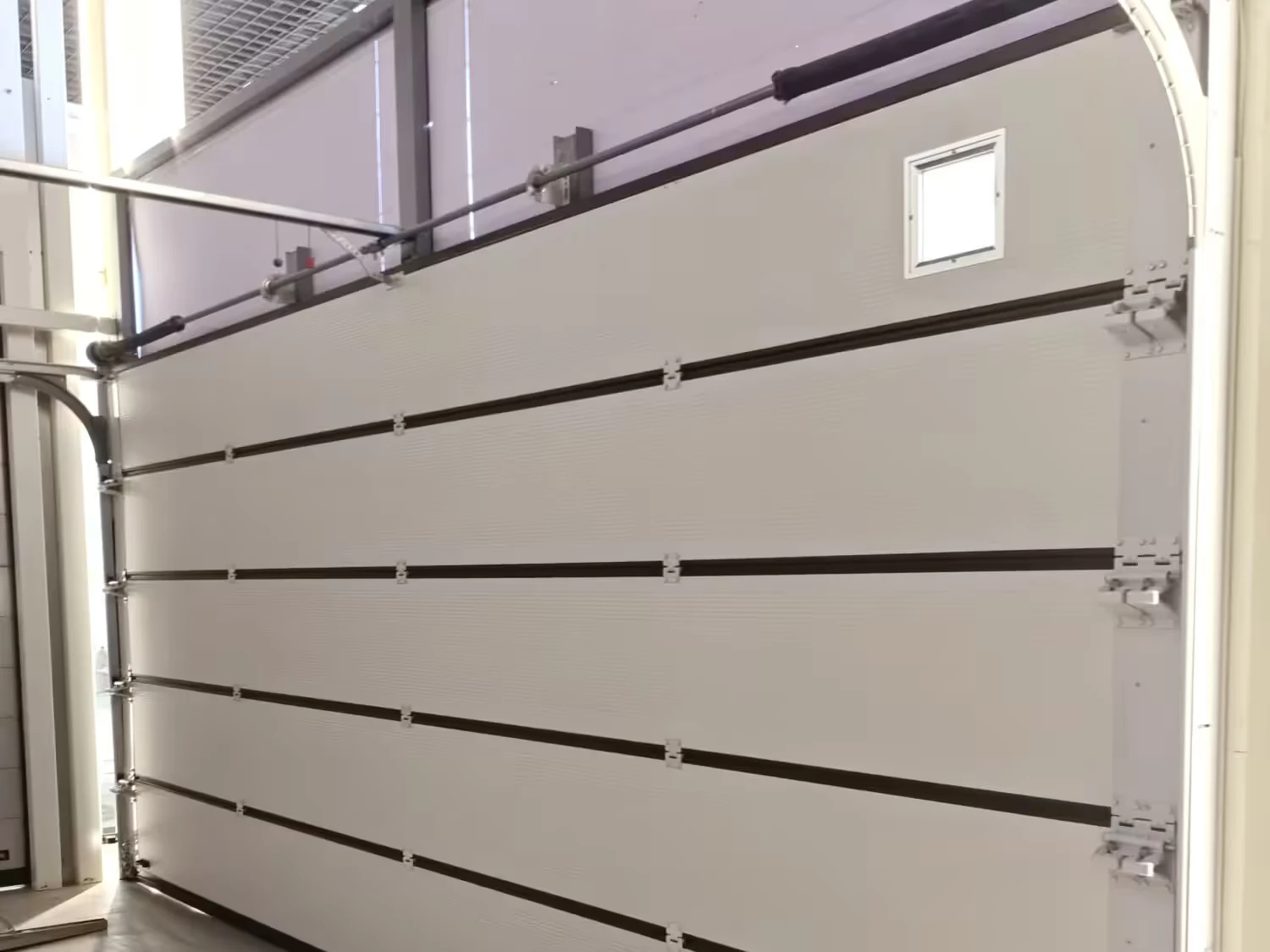

Hardware in the door assembly
