High-Speed Zipper Door
A flexible zipper-guided curtain designed to reset after accidental impact.
- Consider for
- Frequent traffic with a flexible zipper-guided curtain
- Check first
- Reset conditions, safety and sealing needs
Technical review — final configuration requires confirmation.
JBL Entrance supports high-speed zipper door selection for food, pharmaceutical and electronics areas, clean environments and frequent logistics traffic. Review the published configuration, drawings and agreed verification requirements before ordering.
At a glance
- Product
- JE-1003 · High-Speed Zipper Door
- Application
- Food, pharmaceutical and electronics areas, clean environments and frequent logistics traffic.
- Material / construction
- PVC curtain with polyester reinforcement; servo drive with soft start/stop; HMI control; infrared sensor, safety edge and soft curtain design.
- Key parameters
- Maximum size: 4000 × 4500 mm; Opening/closing speed: 0.8-1.5 m/s; Power supply: 220 V / 380 V optional
- Buyer type
- Manufacturers, assemblers, distributors, installers and project partners.
- Engineering support
- Product matching, drawing review and configuration guidance.
- Quality evidence
- Confirm the relevant model documents, inspection scope and acceptance criteria.
Assess a zipper-guided curtain for busy internal routes
What it is & where it fits

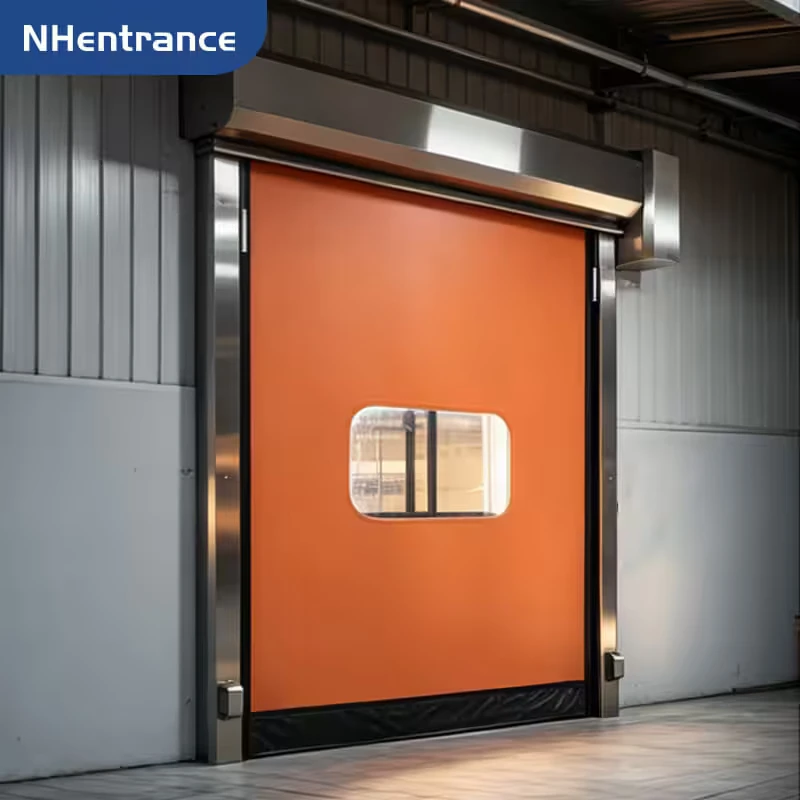

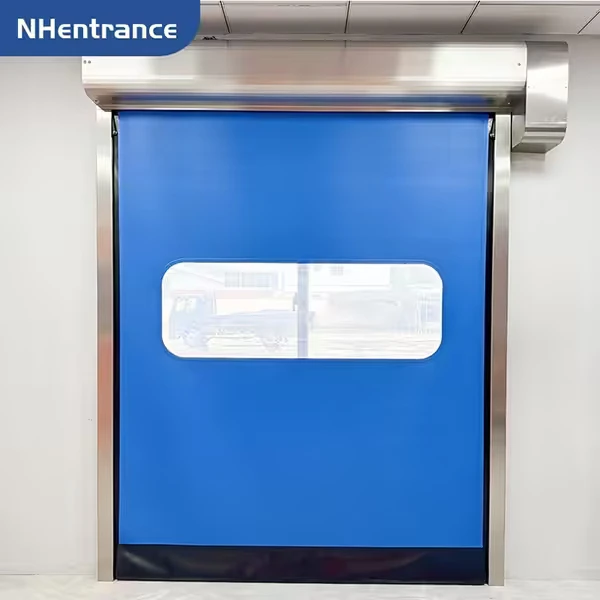

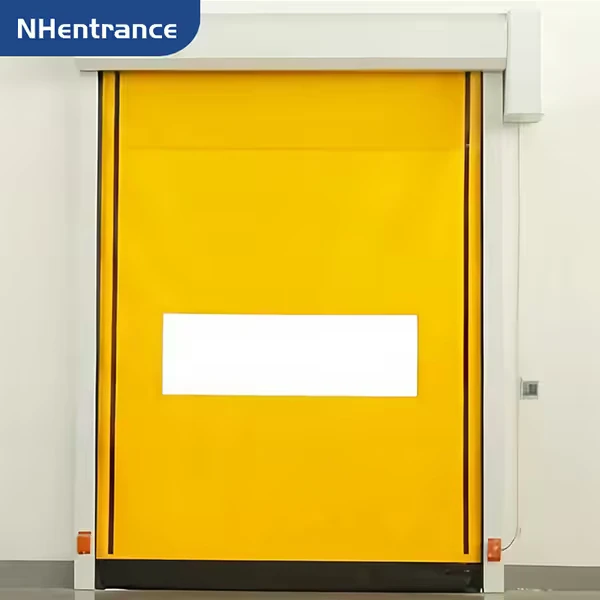

The reinforced flexible curtain runs in zipper-style side guides and is designed to reset after accidental displacement under the appropriate conditions. Consider it for frequent logistics movements and separation between food, pharmaceutical or electronics work areas, subject to the environment review.
What it helps you address
The main selection question is whether a guided flexible curtain suits the passage and its risk of incidental contact. Compare visibility, approach direction and detection coverage as well as the reset feature.
How to choose your configuration
- Check opening size, guide space and mounting surfaces; describe any pressure difference between the two sides.
- Specify visibility and cleaning needs, then confirm curtain construction, guide arrangement and material suitability.
- Review servo operation, the control interface, infrared detection and safety edge together. Locate activation devices around both pedestrian and vehicle approaches.
Limits & checks before ordering
Reset capability does not mean the curtain is damage-proof or that every collision can be recovered automatically. Damaged guides, curtain or hardware require assessment. A listed industry application does not establish cleanroom certification, airtightness, washdown resistance or fire performance.
Start with the information you have
Share the passage dimensions, a photo, traffic type and any existing impact problems. For controlled areas, add cleaning methods, temperature and pressure requirements if available. An initial enquiry can begin with the operational problem alone.
What matters beyond the zipper curtain’s reset feature?
Compare the guide arrangement, traffic approaches, visibility and protective devices, then confirm the operating and environmental conditions. A reset feature does not mean the door is damage-proof or suitable for every controlled environment.
Build a configuration around your requirements
Use this checklist to compare proposals. It identifies questions to resolve, rather than promising that every option is available for every opening.
| Review item | Buyer decision | What to share | What to confirm |
|---|---|---|---|
| Traffic and contact risk | The operational problem you want to address. | Vehicle routes, loads and any existing contact incidents. | Proposed activation, visibility and protective arrangement. |
| Curtain and guides | Whether the arrangement fits the opening. | Opening dimensions, side space and mounting photographs. | Guide layout and the conditions of any reset function. |
| Environmental separation | Cleaning, temperature or pressure requirements. | Conditions on both sides and the required acceptance criteria. | Material suitability, sealing and relevant supporting documents. |
| Maintenance access | How the assembly can be inspected and serviced. | Nearby equipment and available access space. | Access requirements and instructions for the selected configuration. |
What should your quotation include?
Ask for the curtain, guides, drive, controls and protective devices to be listed. Identify any environmental performance requirement explicitly. Do not infer a cleanroom classification, airtightness or automatic recovery after every impact from the product name.
Helpful before you enquire
Have approximate dimensions or an incomplete parts list? Please share what you have and identify any uncertainties. Spring or Delia can help clarify the next questions.
Discuss my requirementsTechnical selection data
Catalogue values for technical review. Ratings and applicability must be confirmed for the selected configuration.
| Parameter | Selection data |
|---|---|
| Opening/closing speed | 0.8-1.5 m/s |
| Power supply | 220 V / 380 V optional |
| Maximum size | 4000 × 4500 mm |
| Control | Variable frequency |
| Service life (source claim) | ≥800,000 cycles |
| Wind resistance (source rating) | Up to level 6 |
| Safety standard | To Be Confirmed |
Technical items to confirm
Source refers to relevant EN safety requirements without identifying a standard or certificate. Compliance and wind-rating test basis: To Be Confirmed.
Source: JBL Entrance Door Systems Catalogue — International English V1.0, 2026-09-19 · pages 8, 9. Confirm final specifications and suitability for your project.
Configuration & finishes
Structure and options
PVC curtain with polyester reinforcement; servo drive with soft start/stop; HMI control; infrared sensor, safety edge and soft curtain design.
Colors, finishes and accessories
Grey, blue, red, yellow and white. Custom colors on request.
Your questions, answered
Practical answers for selecting and specifying this product.
What does “self-repairing” actually mean?
It describes the curtain reset feature after displacement from its guide. It is not automatic repair of torn material, damaged frames or all collision damage. Confirm the reset conditions and operating procedure for the supplied configuration.
How do I choose between a zipper door and a standard PVC door?
Compare the guide arrangement, traffic pattern and risk of accidental curtain displacement, along with sealing and safety requirements. A zipper-guided curtain may address a different operating need from a conventional roll-up arrangement; compare the actual configurations rather than the product name alone.
Can it be specified for food, pharmaceutical or electronics areas?
These are listed applications in the catalogue. Provide hygiene requirements, pressure differences, cleaning chemicals and any required approval documents. Application suitability does not by itself establish a cleanroom classification or certification.
What safety features are listed?
The catalogue lists infrared sensing, a safety edge and a soft-curtain design. Describe pedestrian and vehicle traffic so the final controls and safety arrangement can be reviewed for the opening.
What do you need to review my opening?
Send width and height, quantity, traffic frequency, temperature and pressure or sealing requirements. Include power supply, a site photograph and a drawing if available. Mention whether impact recovery is a priority for your project.
Application fit
The term self-repairing high-speed door describes the curtain reset feature after accidental displacement. It does not mean that all impact damage can be repaired automatically; confirm the reset conditions for the selected configuration.
Food, pharmaceutical and electronics areas, clean environments and frequent logistics traffic.
Include project design loads, safety requirements and any specified approval documents in your enquiry.
How project coordination worksMake the next selection decision.
| Option | Suitable for | Key consideration |
|---|---|---|
| New system | A new opening or specified project | Reset conditions, safety and sealing needs |
| Replacement | An existing installation | Identify the original assembly, interfaces and failed part before confirming compatibility. |
| Assembly / component scope | A partner integrating parts locally | Agree parts included, drawings, local responsibilities and acceptance checks. |
Engineering insight
Reset conditions, safety and sealing needs
Use the same model, drawing revision and configuration across the quotation, technical review and acceptance record. Resolve differences before order release.
Evidence to request
Model-specific technical documents, reviewed drawings, an agreed parts/configuration schedule and inspection requirements. Completed project references are shared only when verified and permitted for disclosure.
