Garage Door Openers & Industrial Operators
JE garage-door openers and industrial shaft operators. All three original operator families remain separately available for selection.
- Consider for
- Matching a drive to the actual door
- Check first
- Door mass, balance, duty and power supply
Technical review — final configuration requires confirmation.
JBL Entrance supports garage door openers & industrial operators selection for garage and industrial sectional-door drive selection. Review the published configuration, drawings and agreed verification requirements before ordering.
At a glance
- Product
- JE-1009 · Garage Door Openers & Industrial Operators
- Application
- Garage and industrial sectional-door drive selection.
- Material / construction
- Match force or torque to actual door mass, balance, dimensions and duty. Confirm controls, safety accessories and radio requirements.
- Key parameters
- Operator models: JE-1101 / JE-1102 / JE-1103 / JE-1104 / JE-1105 / JE-1106 / JE-1107 / JE-1108; Operator models: JE-1109 / JE-1110 / JE-1111
- Buyer type
- Manufacturers, assemblers, distributors, installers and project partners.
- Engineering support
- Product matching, drawing review and configuration guidance.
- Quality evidence
- Confirm the relevant model documents, inspection scope and acceptance criteria.
Select the drive for the door, not by motor power alone
What it is & where it fits
This range contains garage-door openers and industrial shaft operators as separate product families. Garage models JE-1101–JE-1108 and industrial models JE-1109–JE-1111 have different selection data and should be compared within the appropriate family.
What it helps you address
A suitable drive connects your door movement with the controls used on site. Replacement and new-installation enquiries both depend on mechanical fit, door balance and expected usage, rather than simply choosing the highest wattage.
How to choose your configuration
- Identify door type, dimensions, mass, balancing arrangement and hourly or daily opening cycles before comparing force or torque.
- Check mounting space and the shaft or rail interface. Match supply voltage and phase to the specific operator, not just the product-range heading.
- List required buttons, remotes or access-control interfaces; confirm compatible safety inputs, travel limits and manual release with the chosen model.
Limits & checks before ordering
The range is not universally interchangeable. A motor cannot compensate for a damaged or incorrectly balanced door. Pulling force, torque and operating speed describe different model families; do not combine their best figures into one specification. Connectivity features require explicit confirmation.
Start with the information you have
For replacement, send the existing operator label and photos of the door, shaft or rail. Add voltage and frequency of use if known. If mass or torque is unknown, identify that gap in the enquiry rather than guessing a motor size.
Which operator matches your door and intended duty?
Identify the door, balance, drive interface and operating pattern before comparing operator ratings. Keep each model’s force or torque, supply and duty information together. A larger motor does not resolve an unidentified mechanical problem.
Build a configuration around your requirements
Use this checklist to compare proposals. It identifies questions to resolve, rather than promising that every option is available for every opening.
| Review item | Buyer decision | What to share | What to confirm |
|---|---|---|---|
| Door assembly | Which door and lifting arrangement the operator must serve. | Door type, dimensions, available mass data and assembly documents. | Compatibility with the complete door. |
| Drive and mounting | How the proposed operator connects and fits. | Visible labels, shaft or rail details and mounting space. | Specific drive and mounting interface. |
| Power and duty | What supply and use pattern the model must support. | Voltage/phase information and busiest operating period. | The exact model’s ratings and operating limitations. |
| Controls and protection | Which requested functions must work together. | Existing controls, access requirements and desired functions. | Compatible inputs, protective devices and included accessories. |
What should your quotation include?
Identify the selected operator model rather than only the range name. List mounting components, control equipment and accessories, and distinguish site wiring or commissioning responsibilities. Existing door faults and loaded mechanisms need qualified assessment before a replacement is selected.
Helpful before you enquire
Have approximate dimensions or an incomplete parts list? Please share what you have and identify any uncertainties. Spring or Delia can help clarify the next questions.
Discuss my requirementsOperators & installation arrangements
Use the range and installation images to discuss the mounting position; identify the exact operator by model.

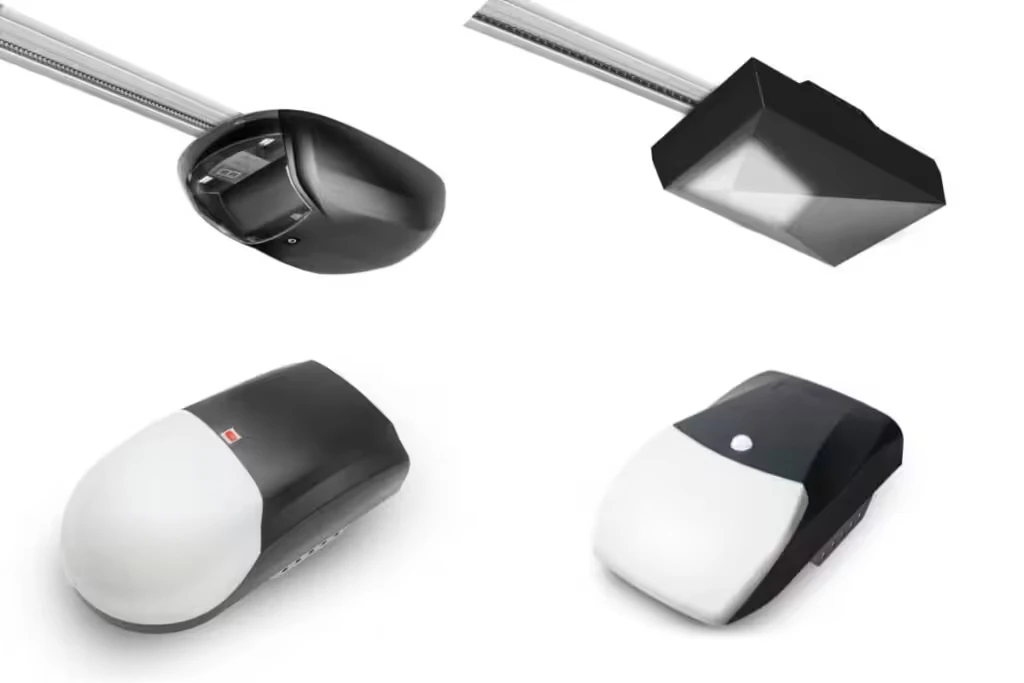

Ceiling-mounted garage door opener examples
View full image

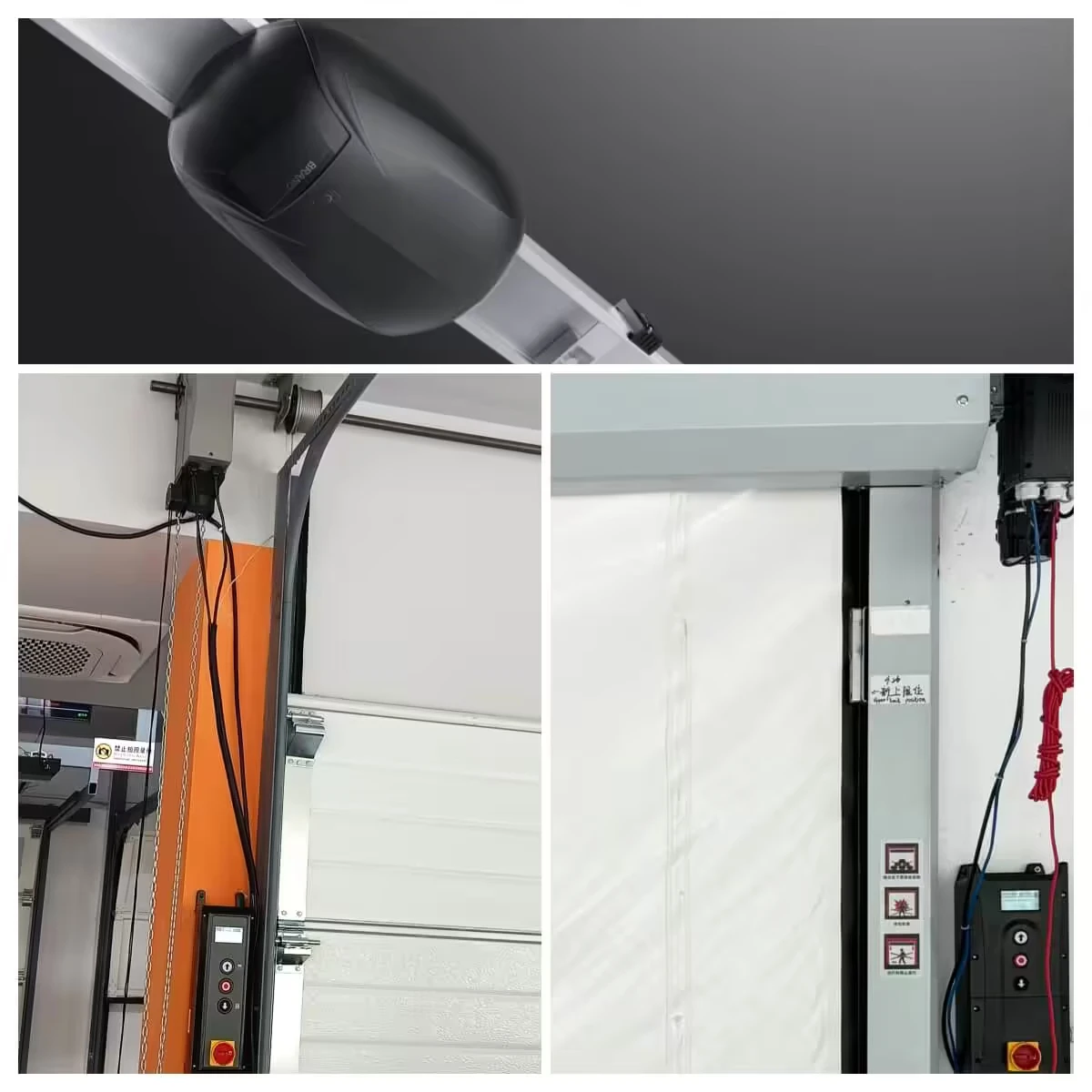

Ceiling and side-mounted operator arrangements
View full image

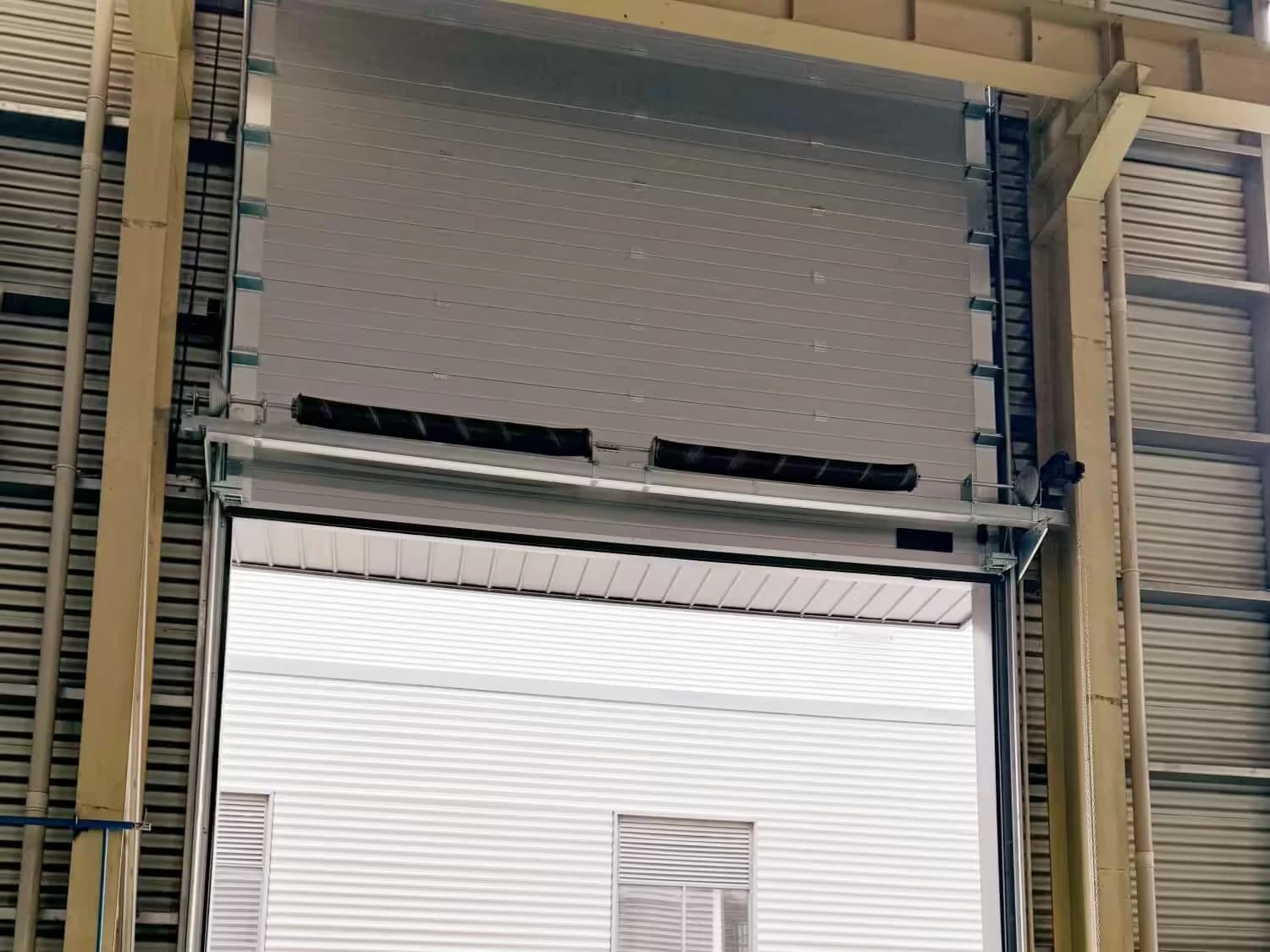

Panel, spring and track arrangement
View full imageSupplier reference imagery, used with permission. Shown configurations are illustrative; final materials, components and suitability are confirmed for each project.
Technical selection data
Catalogue values for technical review. Ratings and applicability must be confirmed for the selected configuration.
| Parameter | JE-1101 to JE-1104 | JE-1105 to JE-1108 |
|---|---|---|
| Models | JE-1101 / JE-1102 / JE-1103 / JE-1104 | JE-1105 / JE-1106 / JE-1107 / JE-1108 |
| Input voltage | 110-120 VAC / 230-240 VAC, 50/60 Hz | 110-120 VAC / 230-240 VAC, 50/60 Hz |
| Power input | 200 / 235 / 245 / 260 W | 220 / 230 / 320 / 420 W |
| Standby power | <0.5 W | <0.5 W |
| Max. pulling force | 600 / 800 / 1000 / 1200 N | 600 / 800 / 1000 / 1200 N |
| Opening speed | 160 mm/s | 250 mm/s |
| Lamp | LED | LED |
| Radio frequency | 433.92 MHz | 433.92 MHz |
| Working temperature | -20 to +40 °C | -20 to +55 °C |
| Door area | 10 / 12 / 14 / 16 m² | 10 / 12 / 14 / 16 m² |
| Parameter | Selection data |
|---|---|
| Models | JE-1109 / JE-1110 / JE-1111 |
| Voltage | 1N~220-240 VAC 50/60 Hz / 1N~110-120 VAC 50/60 Hz |
| Motor power | 400 / 750 / 1000 W |
| Rated output torque | 60 / 100 / 120 Nm |
| Maximum output torque | 80 / 120 / 140 Nm |
| Speed | 5-50 RPM |
| Hollow shaft diameter | 25.44 / 31.75 mm |
| Endurance | 60 c/h |
| Protection | IP54 (IP65 available) |
| Limit/travel setting | Absolute encoder |
| Emergency release | Chain hoist |
| Maximum door area | 25 / 49 / 60 m² |
Technical items to confirm
JE garage opener tables were read visually because they are embedded images. Model-to-rating mapping, compatibility and local radio requirements: To Be Confirmed.
Source: JBL Entrance Door Systems Catalogue — International English V1.0, 2026-09-19 · pages 18, 19, 20. Confirm final specifications and suitability for your project.
Configuration & finishes
Structure and options
Match force or torque to actual door mass, balance, dimensions and duty. Confirm controls, safety accessories and radio requirements.
Colors, finishes and accessories
Garage opener and industrial operator product images retained.
Your questions, answered
Practical answers for selecting and specifying this product.
How do I choose a garage opener or industrial shaft operator?
Start with door type, dimensions, mass, balance and daily operating cycles. Garage opener pulling force and industrial operator torque are different selection measures; compare the appropriate family and mounting arrangement for the actual door.
Can I replace another brand’s motor with one of these?
Compatibility requires review. Send the existing motor nameplate, shaft or track details, mounting dimensions, controller and safety-device connections. A similar-looking housing does not establish mechanical or electrical interchangeability.
What power-supply information is needed?
State site voltage, phase and frequency, along with the chosen operator family. Use the technical tables to compare available configurations, then confirm the exact model and electrical requirements in the quotation.
Can I keep my remotes, sensors or app controls?
Provide their model numbers and connection details. Radio frequency alone does not guarantee remote compatibility, and safety devices or app functions depend on the controller. List every item you want to retain.
What should an operator quotation include?
Ask for the exact motor and controller models, mounting accessories, controls, safety devices and required power arrangement. Include the door details and duty requirements so the supplied scope can be checked as a complete system.
Application fit
Select a garage door opener or industrial door operator against the door type, mass, operating frequency, power supply and control requirements. Compatibility requires technical confirmation.
Garage and industrial sectional-door drive selection.
Include project design loads, safety requirements and any specified approval documents in your enquiry.
How project coordination worksMake the next selection decision.
| Option | Suitable for | Key consideration |
|---|---|---|
| New system | A new opening or specified project | Door mass, balance, duty and power supply |
| Replacement | An existing installation | Identify the original assembly, interfaces and failed part before confirming compatibility. |
| Assembly / component scope | A partner integrating parts locally | Agree parts included, drawings, local responsibilities and acceptance checks. |
Engineering insight
Door mass, balance, duty and power supply
Use the same model, drawing revision and configuration across the quotation, technical review and acceptance record. Resolve differences before order release.
Evidence to request
Model-specific technical documents, reviewed drawings, an agreed parts/configuration schedule and inspection requirements. Completed project references are shared only when verified and permitted for disclosure.
